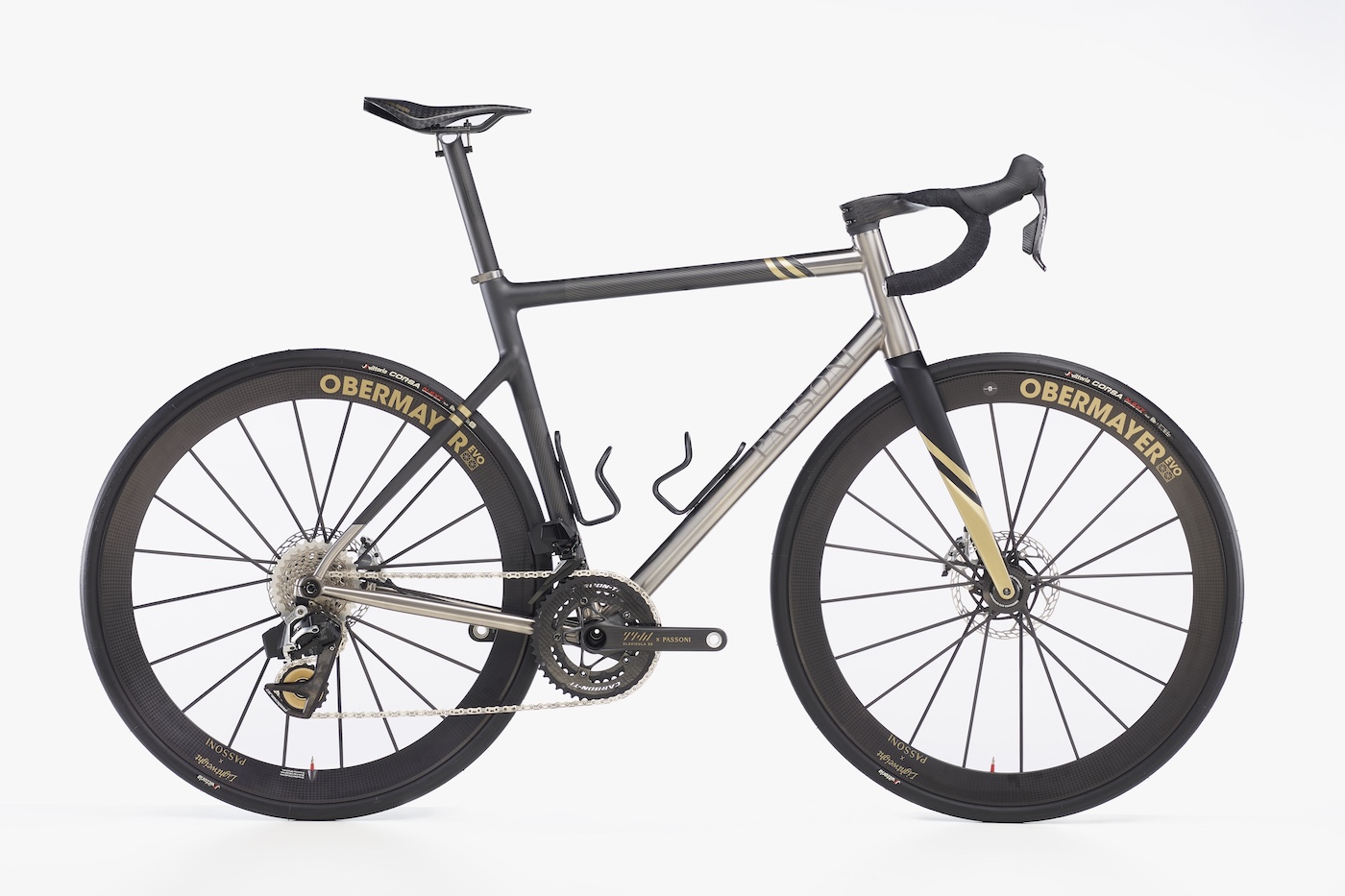

Vinci V2

Material Carbo-Titanium
Frame weight 1.3Kg
Frame Price From €10800
Colour 28 options

A bike designed to push the limits of performance. The Vinci V2 seamlessly blends titanium and carbon for the perfect balance of responsiveness, comfort, and efficiency.


alt image txt

Initially conceived to celebrate Passoni's thirtieth anniversary, the Vinci immediately established itself as an icon of elegance, performance and innovation. Its timeless nature and the appreciation of enthusiasts have pushed us to make it evolve, giving life to the new Vinci V2: a perfect balance of tradition and modernity, craftsmanship and advanced technology.
This new version draws inspiration and know-how from two emblematic models of our history: the Passoni Mito, with its refined titanium lugs combined with carbon tubes, and the XXTi, created to celebrate the company's twentieth anniversary. The Vinci V2 is the perfect synthesis of these two construction philosophies, enhancing the mix of noble materials that has always characterized Passoni's DNA.
alt image txt
alt image txt

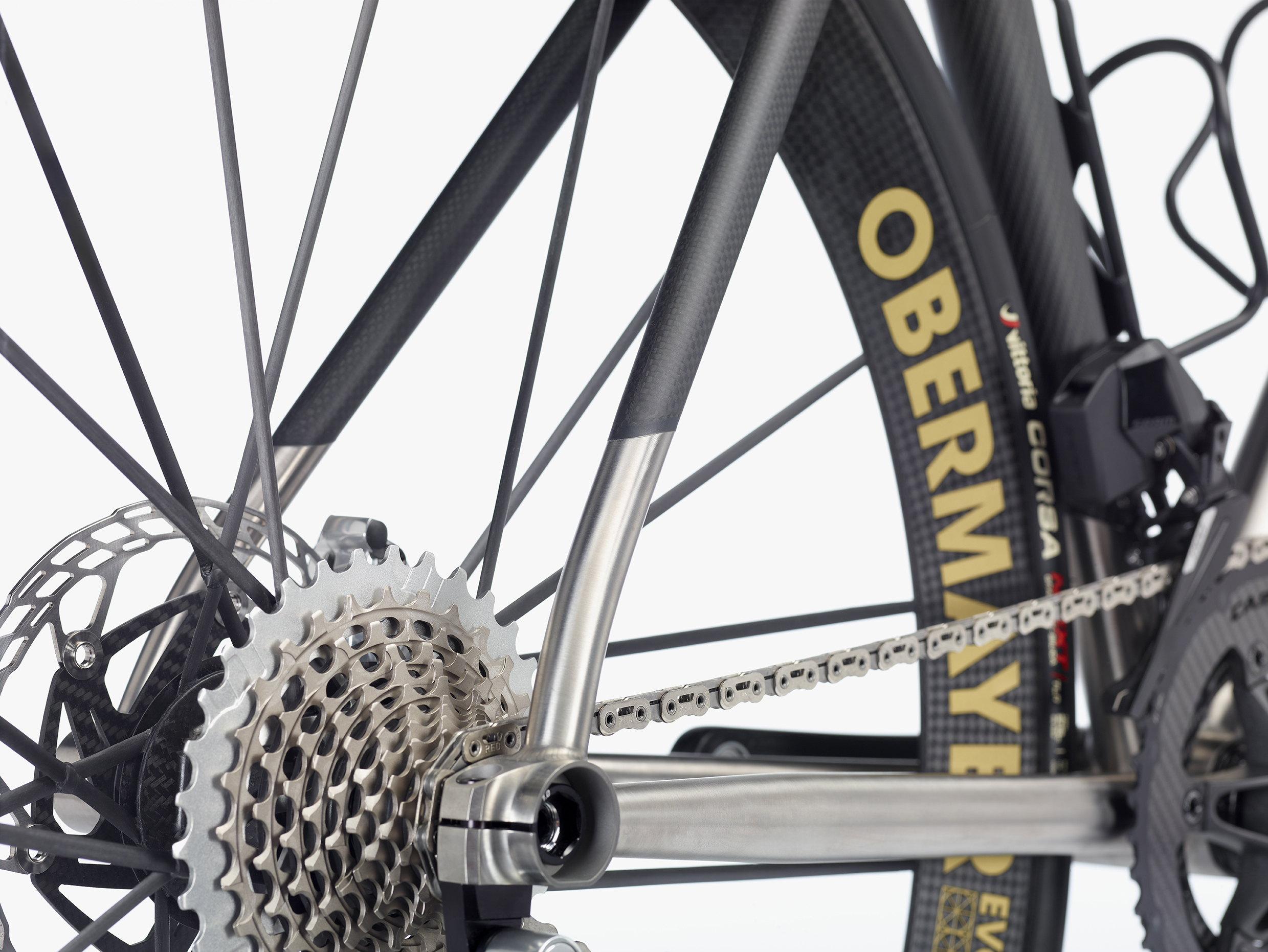

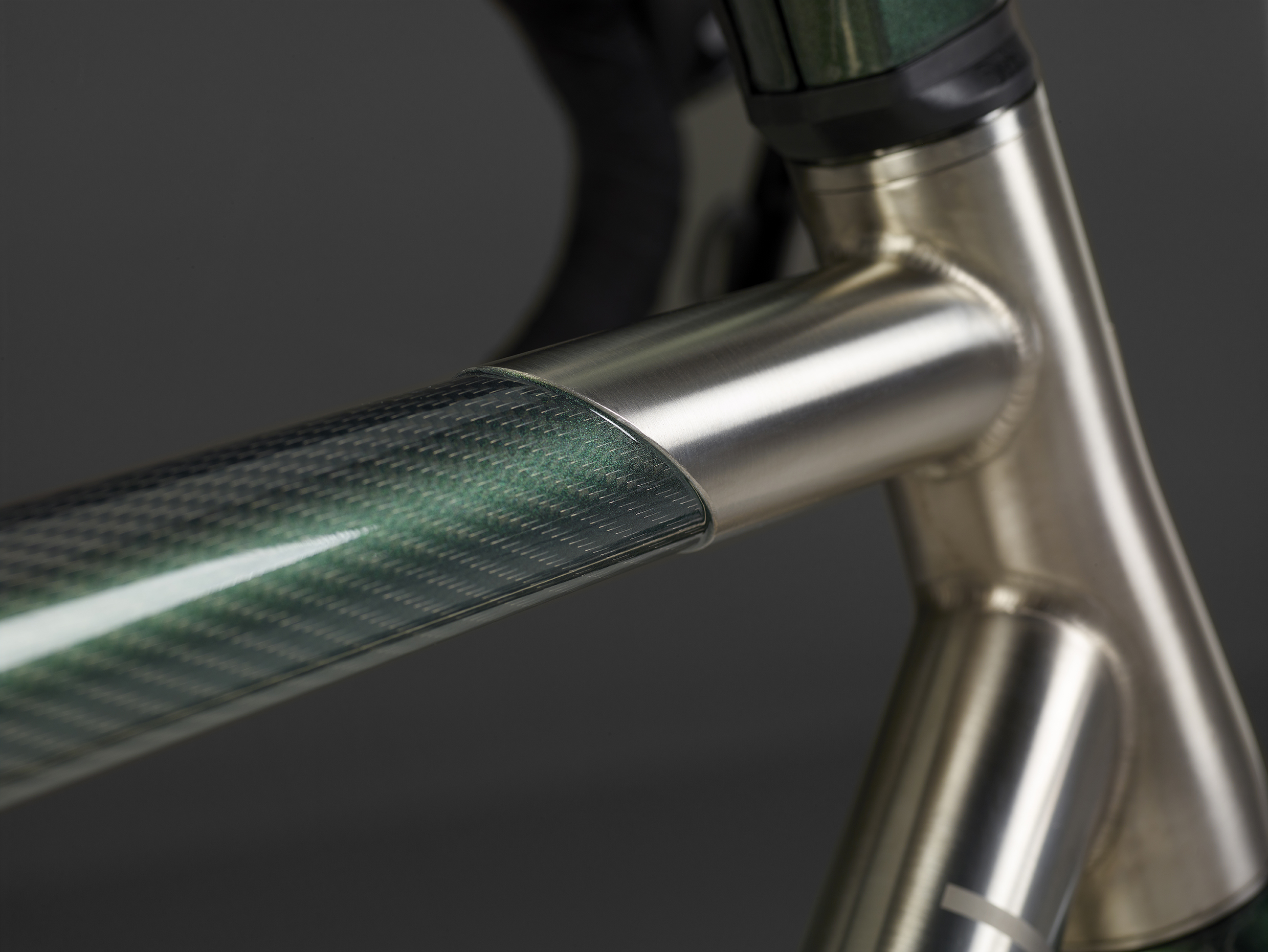

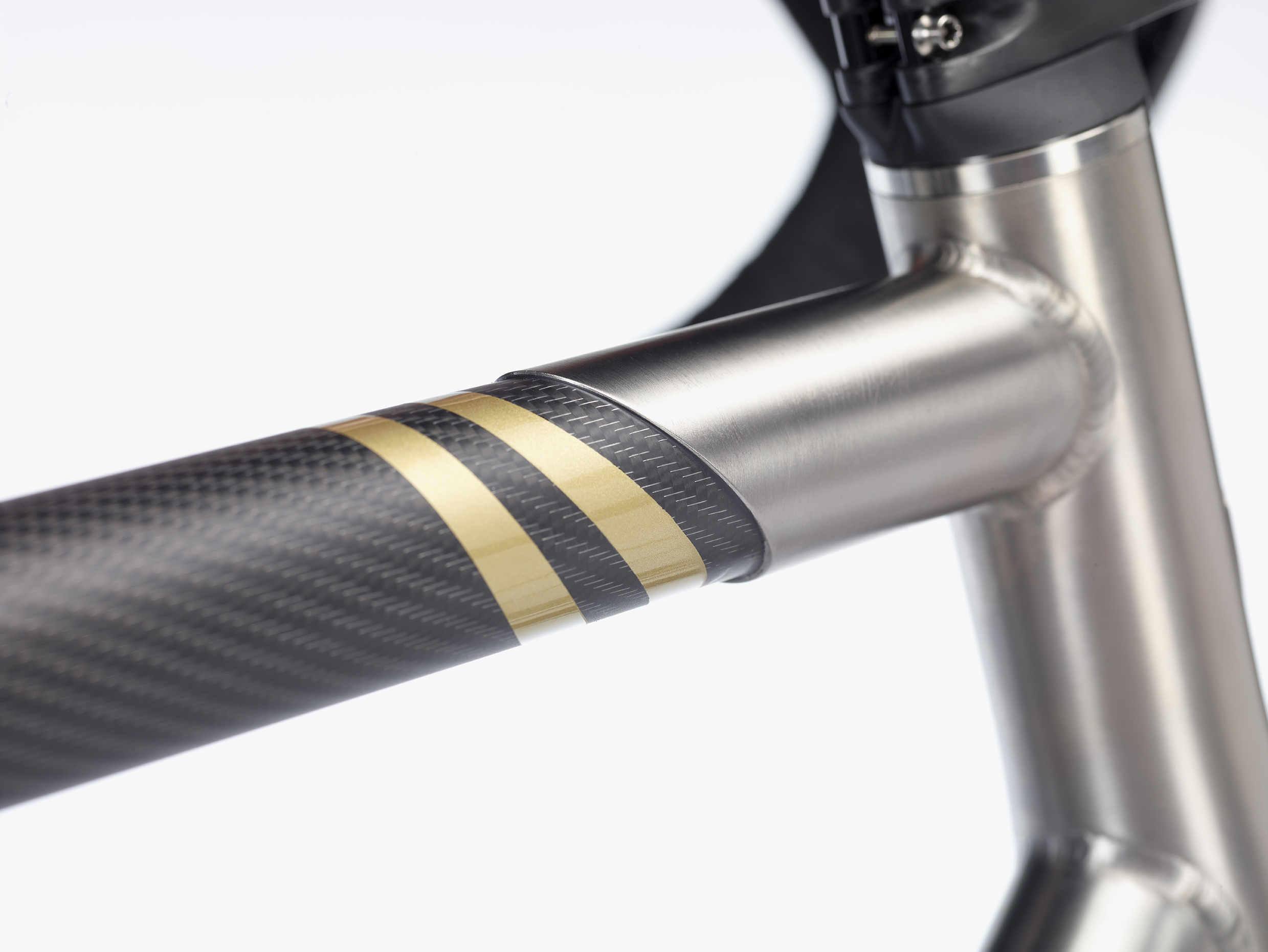

The lower part of the frame follows our unmistakable tradition: double and triple butted grade 9 titanium tubes to ensure rigidity and reactivity, with grade 5 components, machined from solid and machined with the utmost precision in our workshop. The upper part, on the other hand, adopts the proven Carbo-Titanium, a composite material already appreciated in other models in our range, which combines the lightness and reactivity of carbon with the extraordinary vibration damping capabilities offered by titanium filaments.
The essence of the Vinci V2 lies precisely in this fusion of seemingly distant, yet extraordinarily complementary elements. The result is a frame that offers the maximum in terms of performance, comfort and durability over time, ideal for those who seek the best without compromise. Like every Passoni, the Vinci V2 is available both in standard sizes, based on our optimized geometries, and completely custom, for a riding experience perfectly calibrated to the needs of each cyclist. Every detail is taken care of with the utmost attention, making each example a unique and timeless work of art.
alt image txt
Frame Specification
Tubi: Titanio grado 9 (3Al / 2,5V) con diversi spessori, tubi in Carbo-Titanio, Progetto Passoni, per tubo verticale e tubo orizzontale. Titanio grado 5 (6Al / 4V) per tubo sterzo, scatola movimento centrale e forcellini CNC.

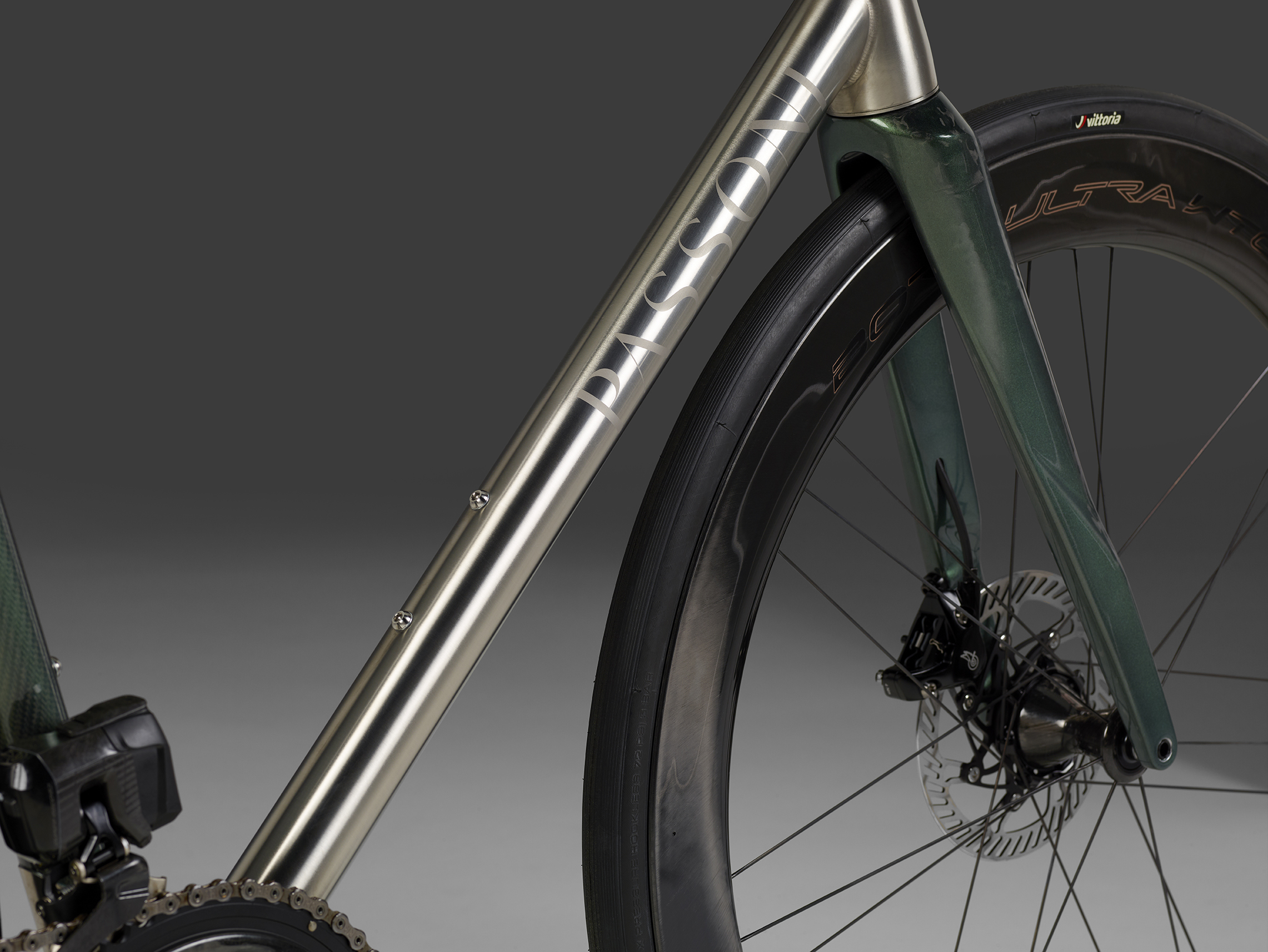

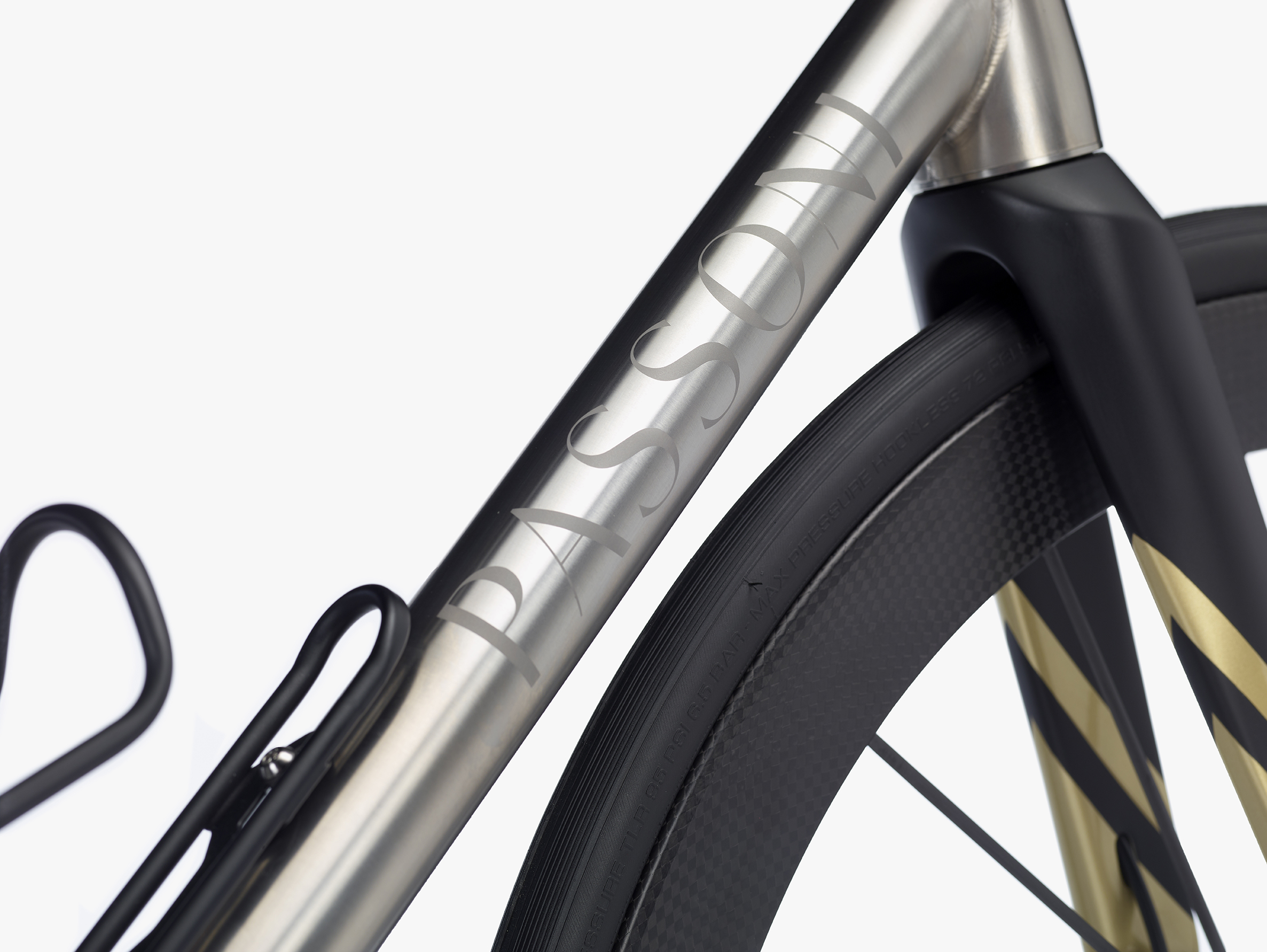

Triangolo anteriore: Tubo orizzontale in carbo-titanio Ø 35mm, tubo sella in carbo-titanio Ø 35 mm, tubo obliquo in titanio Ø 42mm.
Triangolo posteriore: Pendini verticali in Carbo-Titanio Aero Ø 21x24mm. Foderi ovali conici 21 x 27 mm.

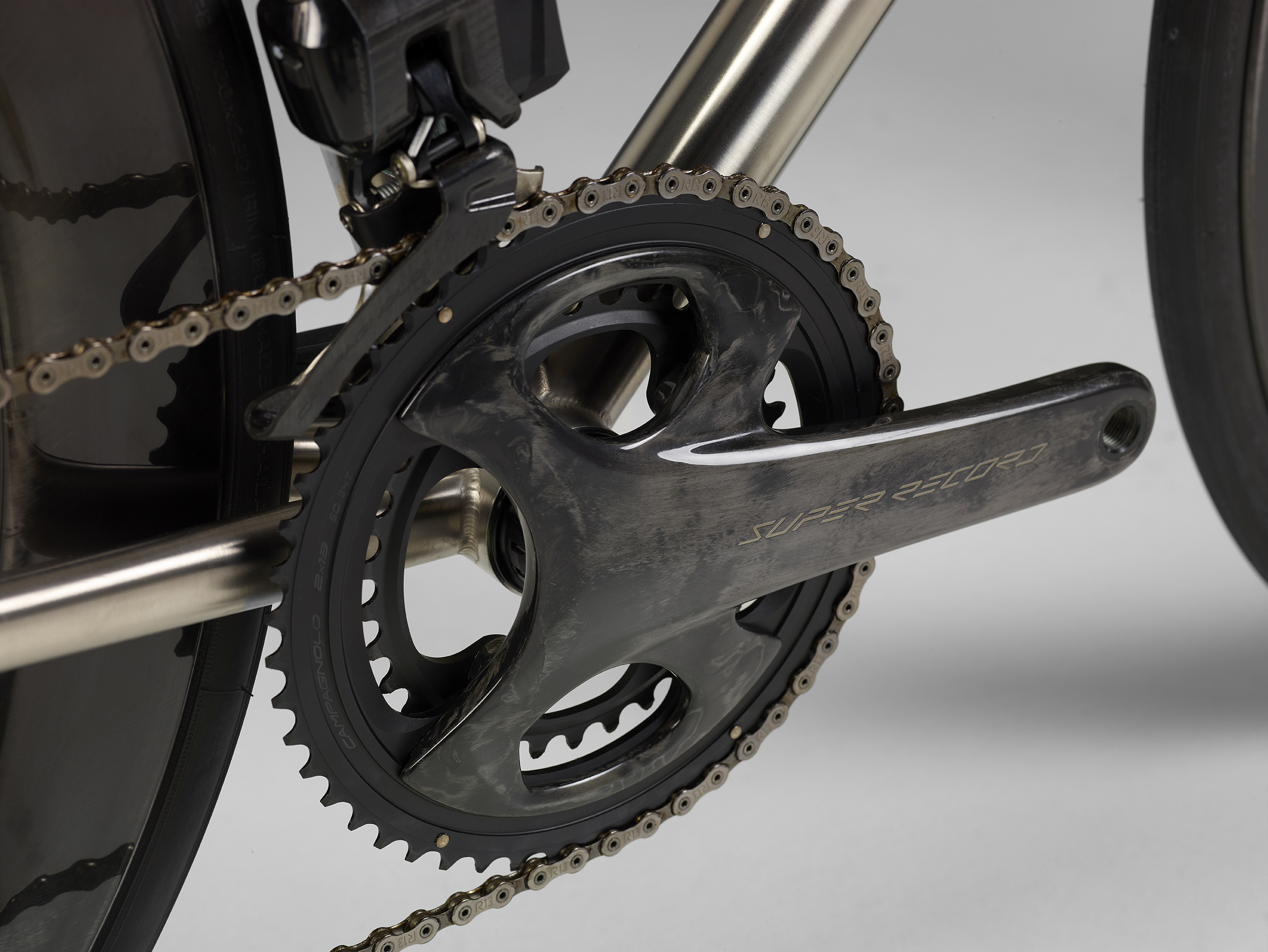

Scatola movimento centrale: Titanio grado 5, lavorazione CNC, logo Passoni inciso e codice telaio, T47

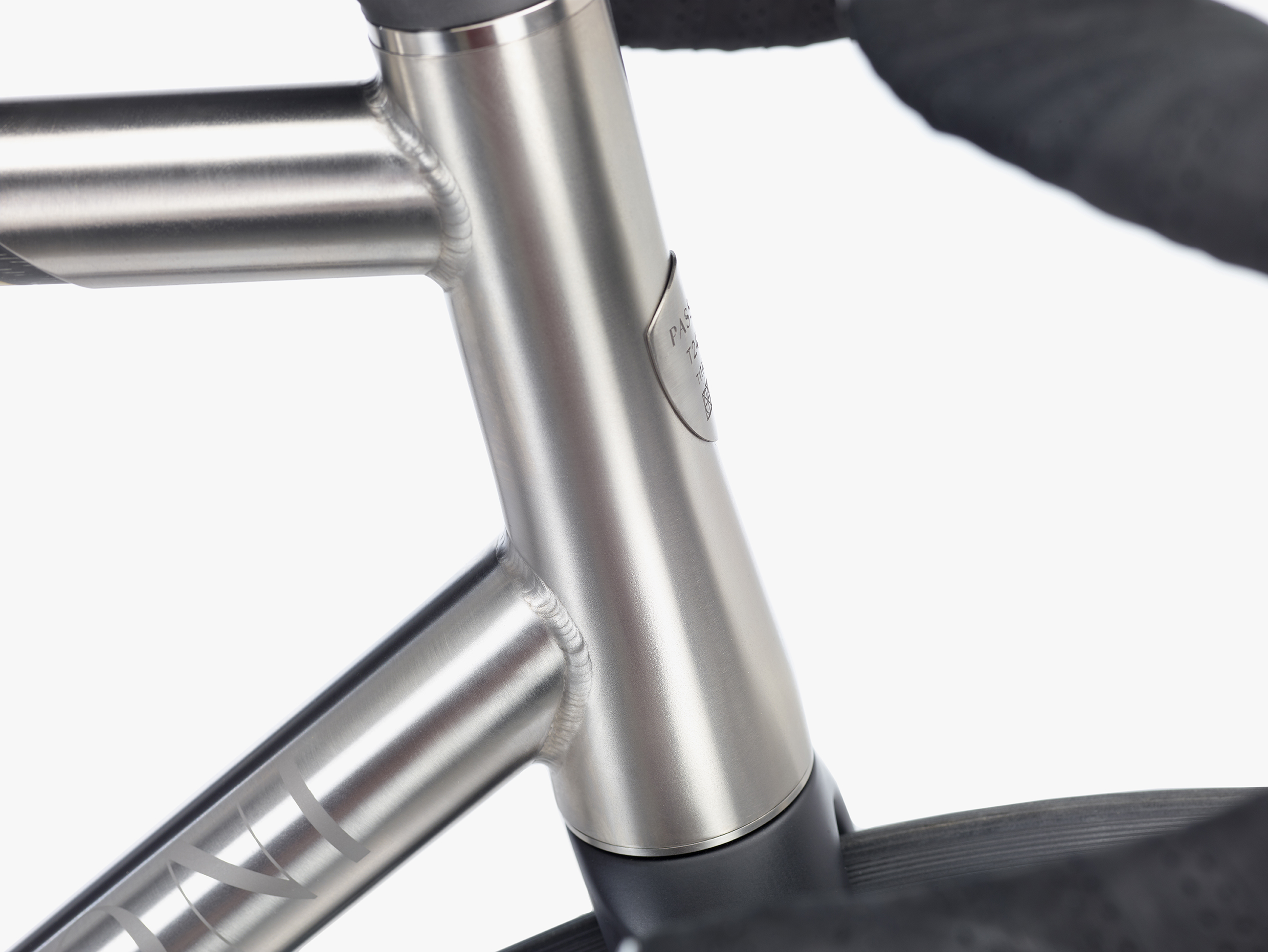

Sterzo: Conica integrata Ø 56mm, lavorata a CNC, cuscinetti Ø 1”1/8 superiore – 1”1/2 inferiore.
Forcellini: Titanio grado 5 lavorato CNC, inserto in Ergal per supporto perno passante freno a disco.
Reggisella: Tradizionale - Passoni
Forcella: Deda EDG Ø 56 mm, perno passante 100 x 12 personalizzato.
Opzioni: Il telaio è disponibile solo per gruppi elettronici.

The famous Passoni finishing

We believe in the beauty of simplicity. By constantly analysing, evolving and refining we aim craft exceptional bikes and deliver an unprecedented level of service. Over the decades we have applied this methodology to our Made-to-Measure process.

made-measure-order-title-step-first-bike THE SANDBLASTED FINISHING Sandblasted & Anodized (F3)

Aesthetic welding ripples, tubes finished by glass beads blasting, graphics applied directly on the tube in titanium by anodizing process.

made-measure-order-title-step-second-bike THE MACHINED SATING FINISHING The "Vinci" finishing (F2)

Aesthetic welding ripples, tubes machine satin finished, graphics applied directly on the tube in titanium by sandblast.

made-measure-order-title-step-third-bike THE CLASSIC PASSONI FINISHING Glazed by hand (F1)

Welding joints and tubes glazed by hand, graphics applied directly on the tube in titanium by sandblast.
