Cicloprato

Material Titanium
Frame weight 1.7Kg
Price From €7599*
Colour 24 options

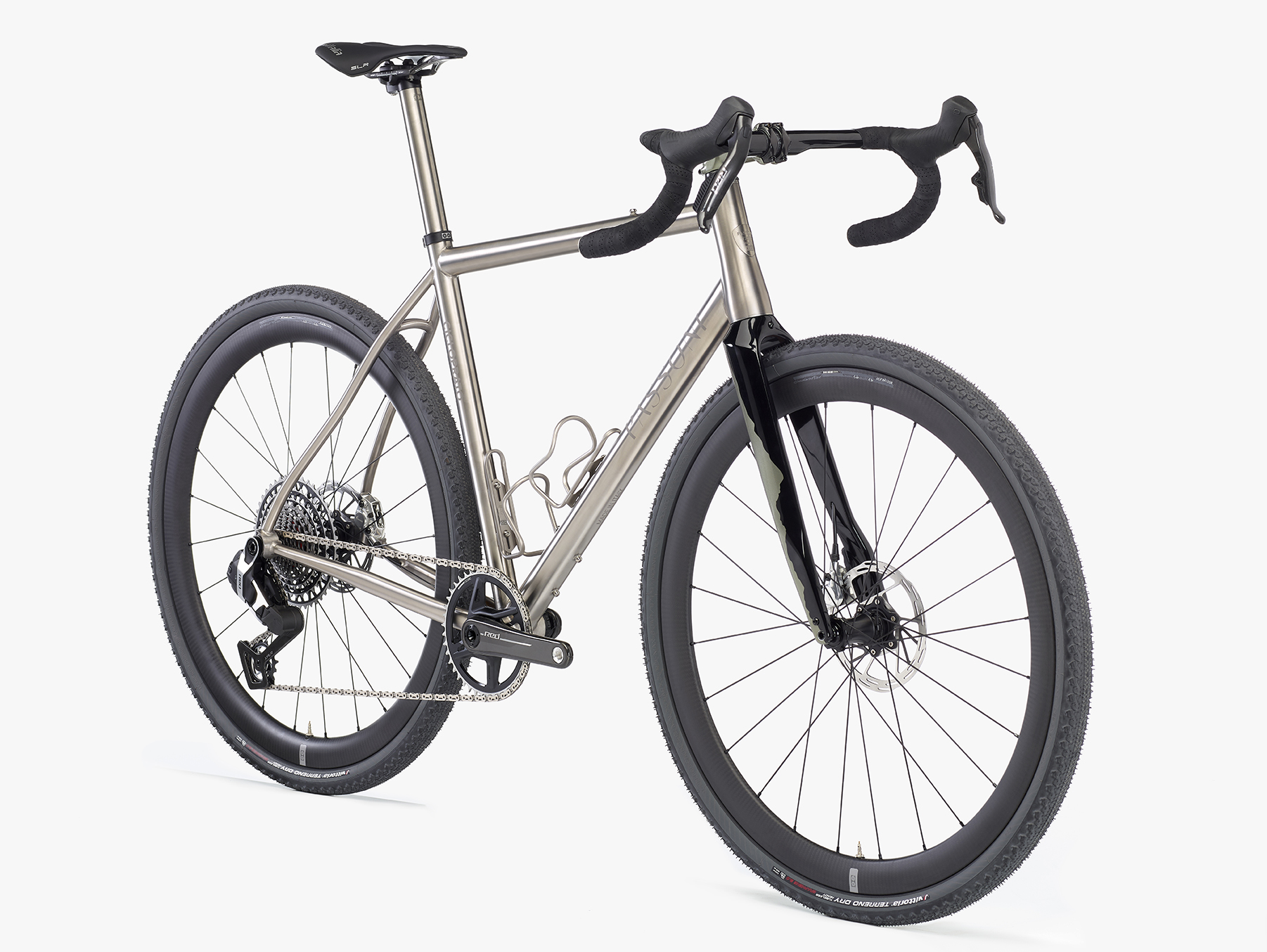

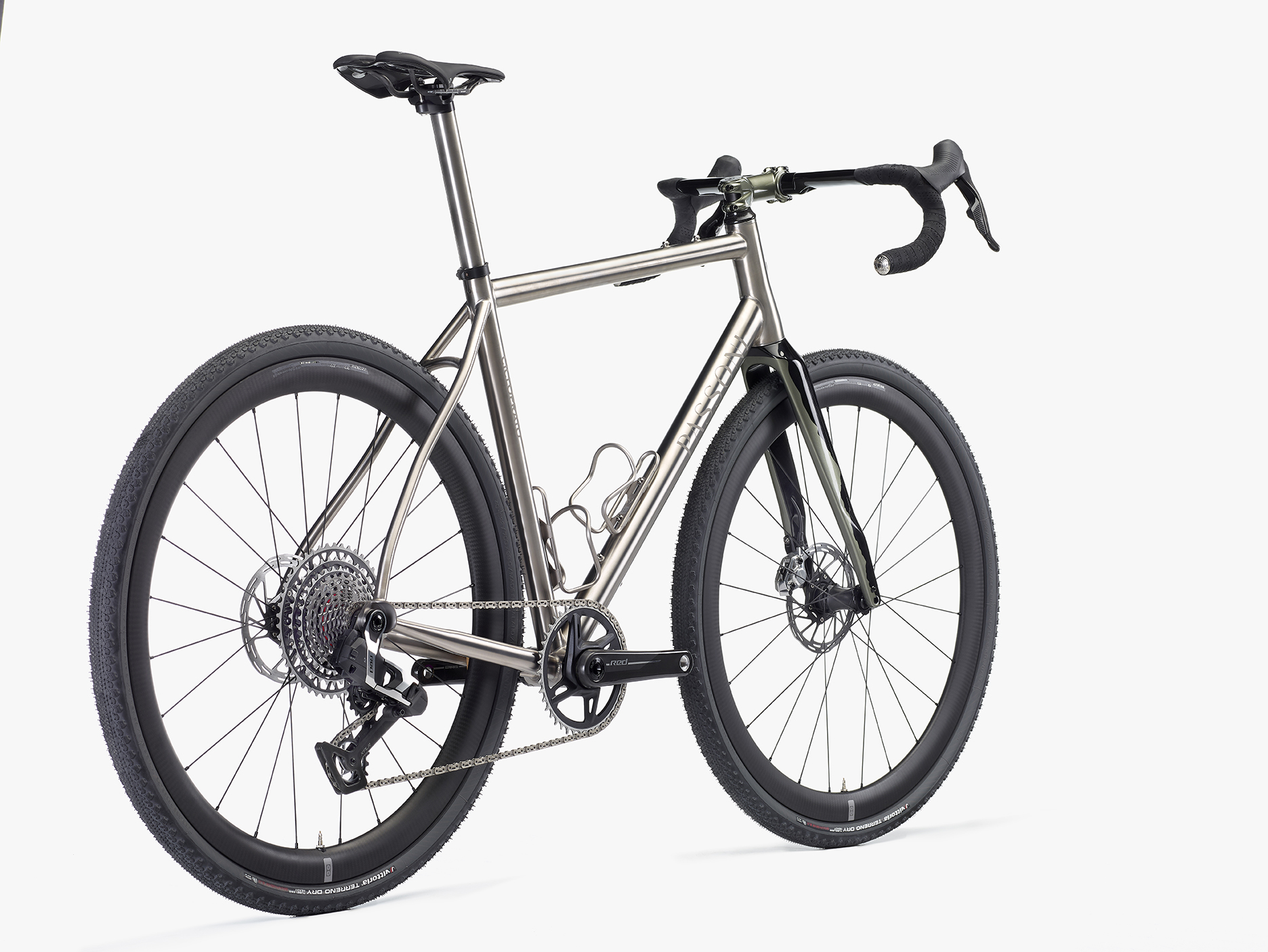

The Cicloprato bike challenges the adventure with low weight and great handling making the bike alive, no matter the surface under its tyres.

“The Cicloprato is inspired by the countryside near our Milan-based atelier. A bike like the Cicloprato will climb a mountain on a road that turns into a gravel track, that becomes a trail, and help you conquer each in turn”

An invitation to adventure. The Cicloprato provides the refinement Passoni is known for and lets you take it with you deep into the wilderness. With fitments suiting it to carrying the latest bikepacking bags, its superlatively fast titanium frame is both incredibly light and robust. Simultaneously utilitarian and beautiful, it’s able to support a range of pursuits from lightweight adventure touring to gravel racing. Taking Passoni’s racing heritage and pushing it beyond the limits of the road, the Cicloprato also retains the speed and sharp handling for which our bicycles are famed.
alt image txt
alt image txt

From the white roads of Tuscany to high paths through the Alps, the Cicloprato allows you to traverse the hardest terrain in comfort. Constructed from the highest grades of titanium, this is custom drawn before being welded in a sealed chamber to ensure the strongest and most consistent welds possible. Incredibly lightweight, the resulting frame is also unsurpassed in its durability. Uniquely suitable for use on adventure-oriented bicycles, unlike carbon fibre, titanium is well suited to supporting the straps used by bikepacking luggage. Allowing the Cicloprato to elude wear from both terrain and kit, the result is a machine as resilient as it is refined.

The Cicloprato is Passoni’s most protean bicycle. Able to accept both 650b and 700c wheelsets, this adaptable nature is extended to the ways in which it can be customised. Equipped with routing for either a mechanical or electronic groupset, the frame can be built using our adjustable or fixed CNC machined bolt-through dropouts. Allowing you to carry exactly what you want, additional luggage mounts can be added to the top tube along with supplementary fixings for an additional water bottle on the underside of the downtube. All uniquely suited to withstand the rigours of off-road use, the Cicloprato can be finished using Passoni’s full range of post-production treatments. Creating a lustrous yet hardwearing matt or satin finish, each serves to perfectly accentuate the craft employed in its fabrication.
alt image txt
Frame Specification
Tubes Titanium grade 9 (3Al / 2,5V) with different thicknesses, drawn and strengthened. Titanium grade 5 (6Al / 4V) for head tube, bottom bracket shell and dropouts, CNC machined.

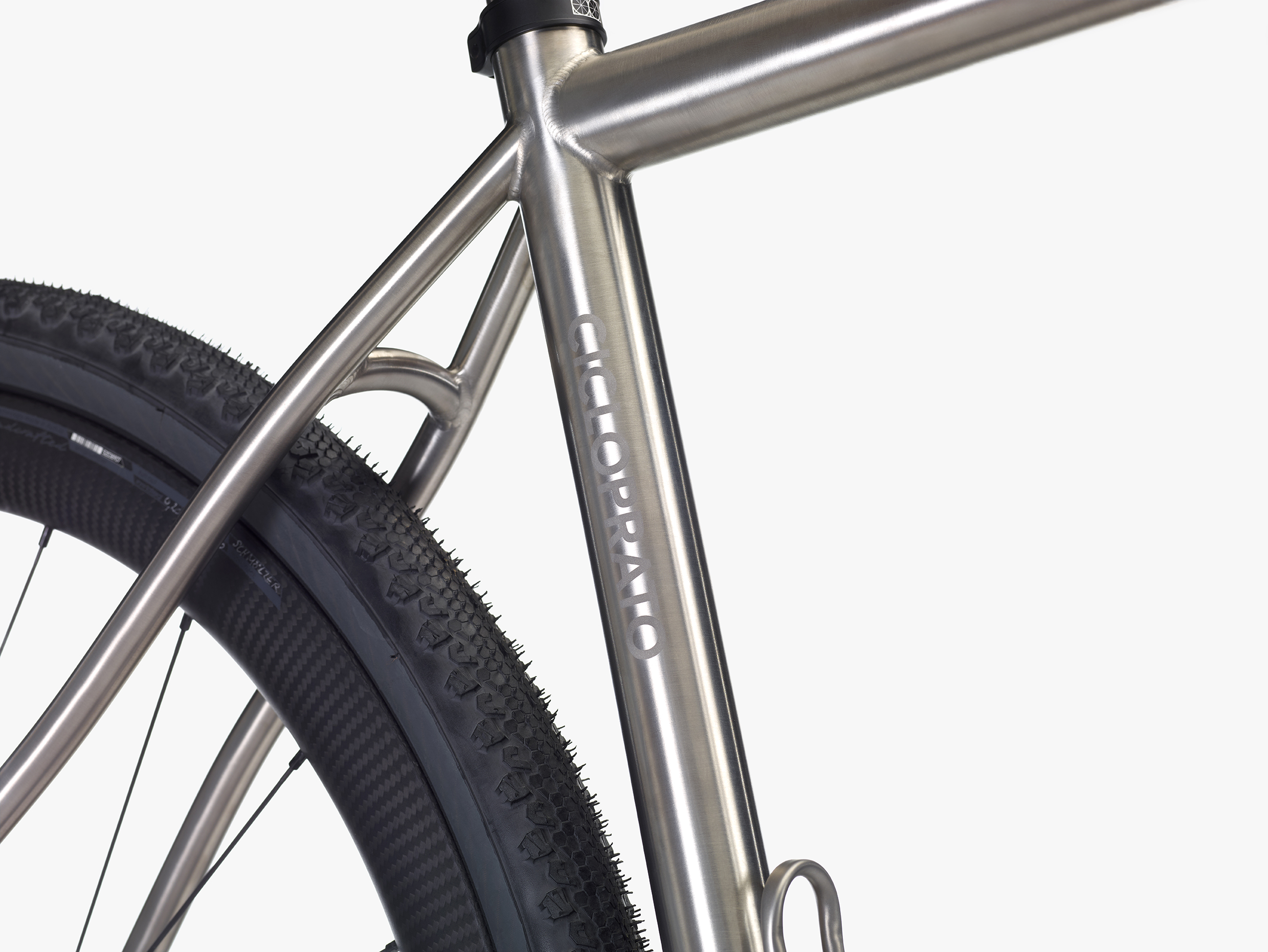

Front Triangle Round tubes, top tube Ø 35 mm, seat tube Ø 35 mm with loop for wiring output, downtube Ø 44 mm.

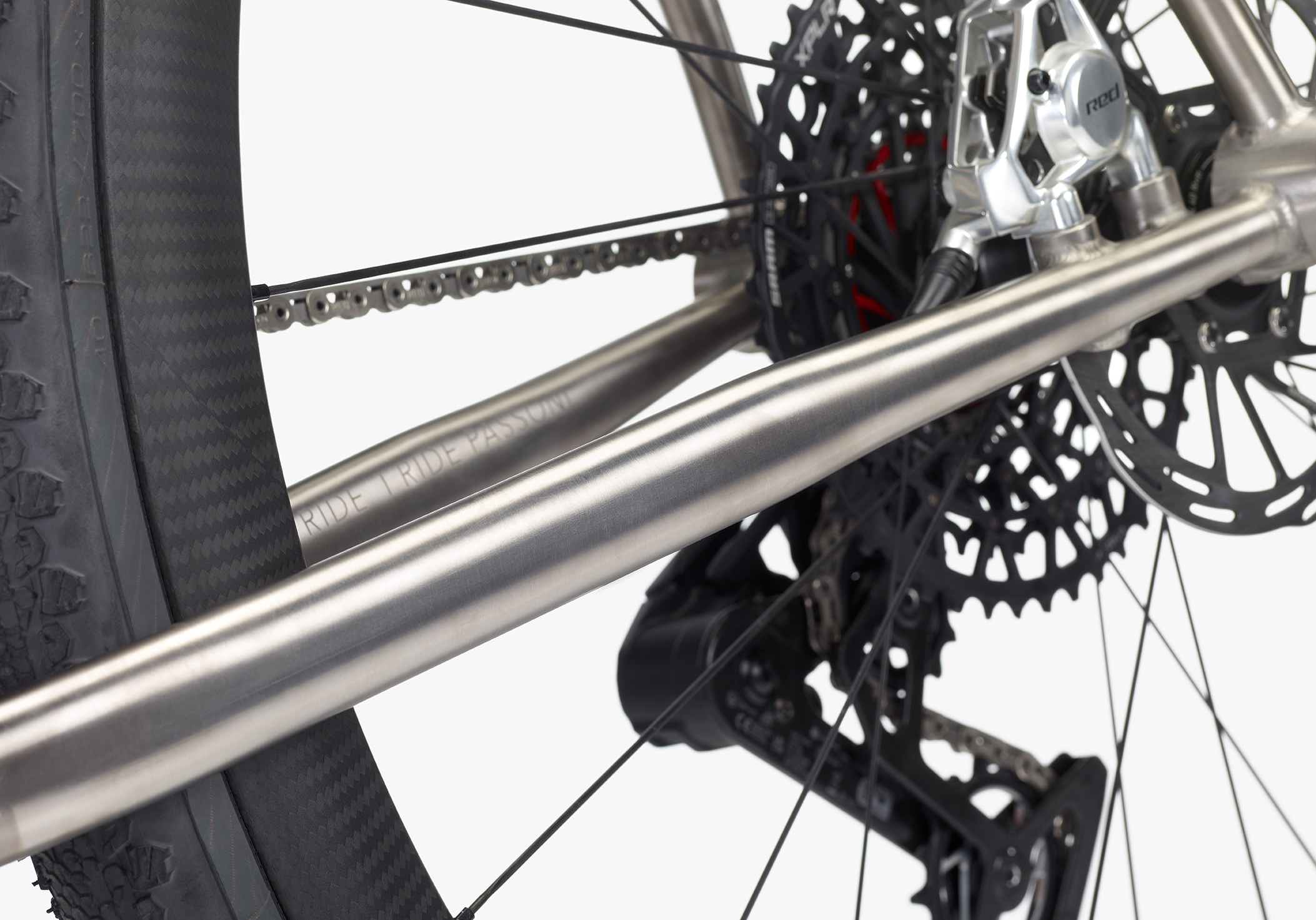

Rear Triangle Round seat stays Ø 16 mm, Oval chain stays 21 x 27mm S-shaped.
Bottom Bracket Shell Titanium grade 5, CNC machined, Passoni engraved logo and frame code, PF30 system.
Headtube Integrated conical Ø 56 mm, CNC machined, bearings Ø 1”1/8 upper – 1”1/2 lower
Dropouts Dropout titanium grade 5, CNC machined thru-axle 159x12. Aluminium replaceable hanger. Flat Mount.
Seat Clamp Aluminium seat clamp made by Carbon-Ti customised Passoni or Titanium seat clamp customised Passoni

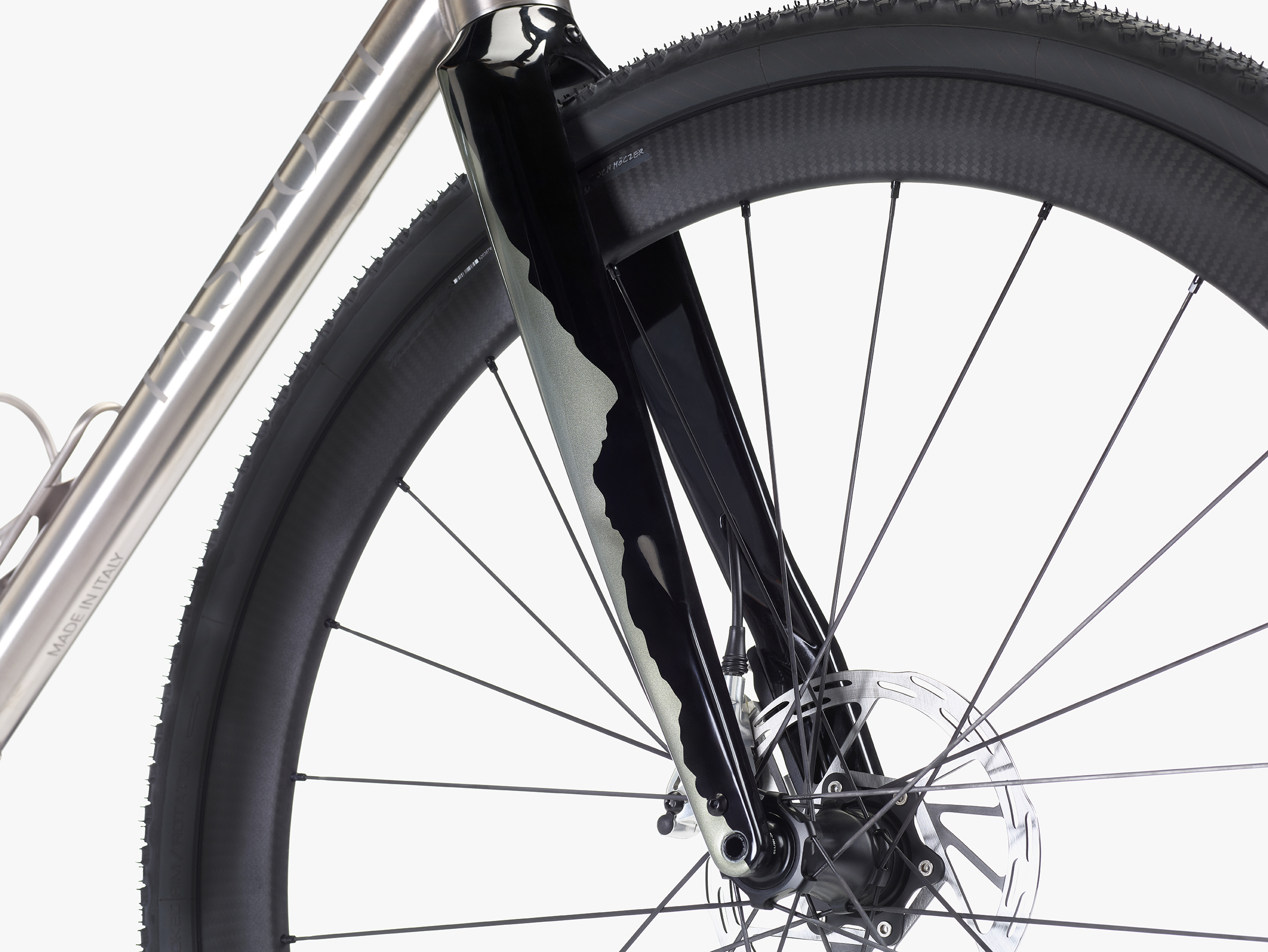

Fork Columbus Futura Cross Plus ø 56 mm
Wheelset Compatibility The Cicloprato could fit both 650b and 700c wheelset.

The famous Passoni finishing

We believe in the beauty of simplicity. By constantly analysing, evolving and refining we aim craft exceptional bikes and deliver an unprecedented level of service. Over the decades we have applied this methodology to our Made-to-Measure process.

made-measure-order-title-step-first-bike THE SANDBLASTED FINISHING Sandblasted & Anodized (F3)

Aesthetic welding ripples, tubes finished by glass beads blasting, graphics applied directly on the tube in titanium by anodizing process.

made-measure-order-title-step-second-bike THE MACHINED SATING FINISHING The "Vinci" finishing (F2)

Aesthetic welding ripples, tubes machine satin finished, graphics applied directly on the tube in titanium by sandblast.

made-measure-order-title-step-third-bike THE CLASSIC PASSONI FINISHING Glazed by hand (F1)

Welding joints and tubes glazed by hand, graphics applied directly on the tube in titanium by sandblast.
